【ANSI】DN150 American Standard Rubber Vibration Damping Joint “American Standard”
The official website of Shanghai Songjiang Vibration Absorber Co.,Ltd. presents the following: 【ANSI】DN150 American Standard Rubber Vibration Damping Joint “150Lb American Standard”. Songjiang Group introduces 150lb standard American rubber vibration damping joints to numerous clients across the Americas. Our factory is equipped with its own automated production and fatigue testing equipment. We welcome you to visit and inspect the premises in person.
1. Photographs of the 150lb American Standard Rubber Vibration Damping Joint:
2.Introduction to the 150lb American Standard Rubber Vibration Damping Joint:
Name: American Standard Rubber Vibration Damping Joint
Model: ANSI-150LB
Diameter: DN150 (6 inches)
Rubber: EPDM (All EPDM rubber used by Songjiang Group is sourced from Japan’s Mitsui 4045, with a content of approximately 50%. It is accompanied by material certification, content test reports, and product and performance test certificates from the National Type Test Center.)
Flange: Cold galvanized carbon steel
Advantages: Vibration reduction, noise reduction, pipe compensation, capable of deflection, and displacement.
Warranty: 3 years
Installation Length: 130mm (150mm)
Axial Compression: 10mm
Axial Extension: 6mm
Lateral Displacement: 12mm
Deflection Angle: 6°
Standard: ANSI-150LB
Flange Outer Diameter: 280mm
Bolt Hole Center Distance: 241.5mm
Bolt Hole Diameter: 22mm
Number of Bolt Holes: 8
Pressure Rating: 150LB (PN20)
Flange Material: Carbon Steel (Q235)
Medium: Seawater, mild acid and alkali
Manufacturer: Shanghai Songjiang Vibration Absorber Co.,Ltd.
3. On-site Shipment of the 150lb American Standard Rubber Vibration Damping Joint:

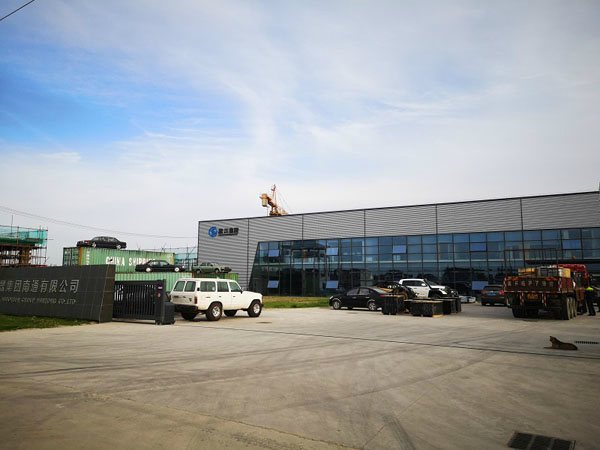

4. Introduction to the Factory Producing the 150lb American Standard Rubber Vibration Damping Joint:
